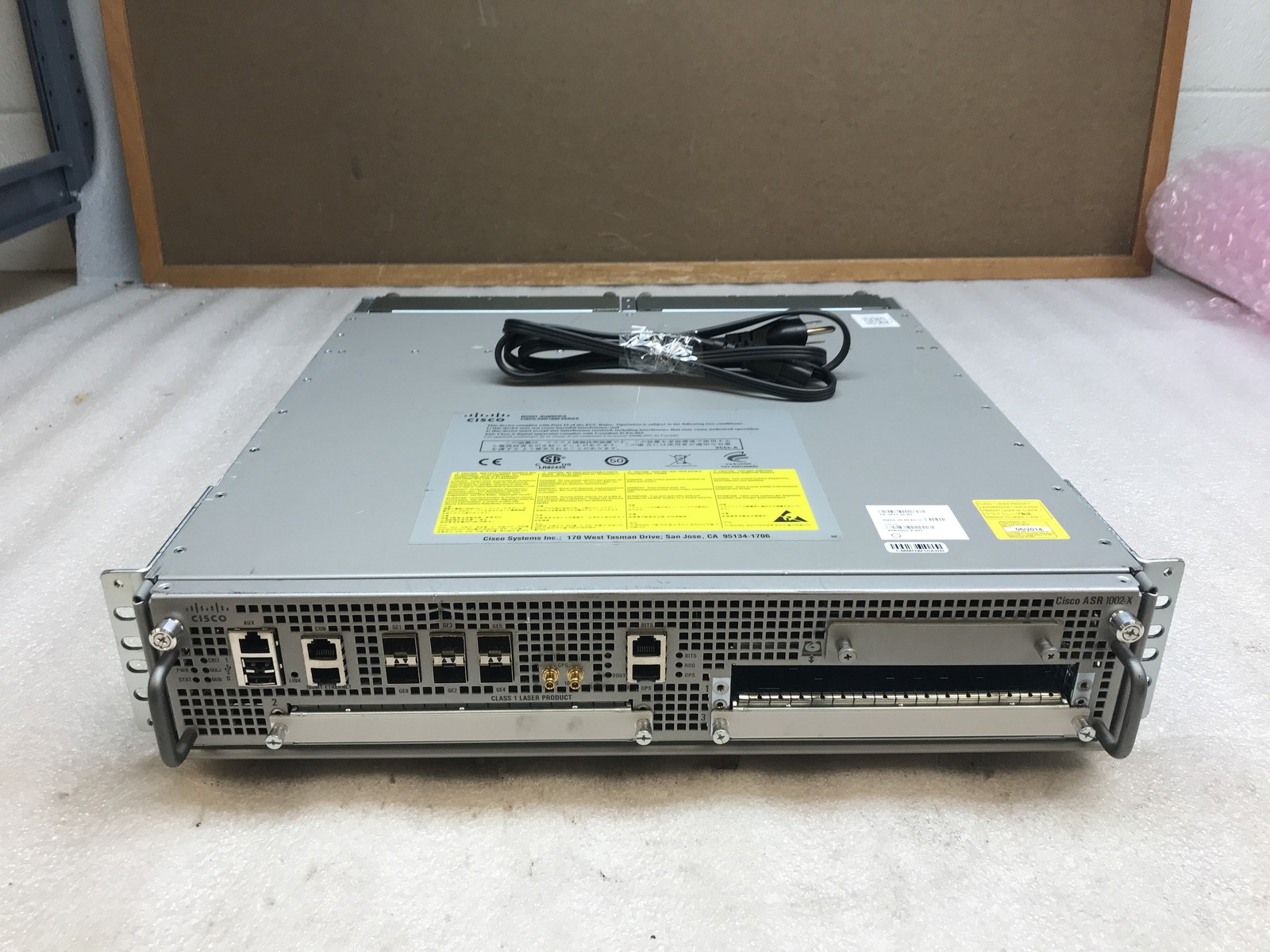

Listing Grid template example Product Photo Description Cisco ASR1002-X V01 5Gbps Adv Enterprise Router Dual AC PSU Tested Cisco ASR1002-X V01 5Gbps Adv Enterprise Router Dual AC PSU Tested

The Cisco ASR1002-X is a high-performance enterprise edge router designed for WAN aggregation, data-center interconnects, managed services, and other demanding network environments. This unit has been console tested, boots successfully, retains its configuration, and recognizes all installed hardware.

The router is running Cisco IOS XE 03.13.06a.S / IOS 15.4(3)S6a. It includes a permanent Advanced Enterprise license with licensed throughput of 5 Gbps. Both power supplies report healthy. Unused interfaces were administratively disabled to clear the expected missing-transceiver and disconnected-port Cisco

Model: ASR1002-X

Exterior hardware version: V01

Electronic hardware inventory revision: V02

Chassis serial number: FOX1813GW4N

Route Processor serial number: JAE182303Z9

Installed memory: 8 GB

Internal bootflash: Approximately 6.7 GB

Available bootflash space: Approximately 5.12 GB

Built-in network interfaces: 6× Gigabit Ethernet SFP ports

Management interface: 1× Gigabit Ethernet

Power supplies: 2× Cisco ASR1002-PWR-AC V03

Licensed throughput: 5 Gbps

License package: Advanced Enterprise

License status: Permanent and active

IOS XE version: 03.13.06a.S

Cisco IOS version: 15.4(3)S6a

System register: 0x2102

Rack form factor: 2RU

PoE support: No

Stackable: No

Key Features

• Permanent Cisco Advanced Enterprise license
• Licensed for up to 5 Gbps aggregate throughput
• Six integrated Gigabit Ethernet SFP interfaces
• Dual hot-swappable AC power supplies
• Redundant power capability
• Modular Cisco ASR 1000 Series architecture
• Supports advanced routing, security, VPN, QoS, and enterprise WAN services
• Explicitly configured to boot from the newest installed IOS image
• Additional older IOS images retained on bootflash for recovery

Testing Performed

• Successfully powered on and completed boot process
• Console access tested
• IOS XE boot image verified
• Boot variable configured and tested through a reload
• Configuration register verified at 0x2102
• Startup configuration successfully saved and retained
• NVRAM persistence tested
• Both power supplies detected and reporting OK
• Route Processor and forwarding hardware reporting OK
• Temperatures and voltages verified within normal operating ranges
• Permanent Advanced Enterprise license verified
• 5 Gbps throughput license verified
• Bootflash filesystem checked and accessible
• Network interfaces detected
• Unused interfaces administratively disabled to clear critical port alarms

Important Notes

• The exterior label identifies the unit as V01, while Cisco’s electronic inventory reports hardware revision V02.
• No SFP transceivers are installed.
• The router reports an informational HARDDISK MISSING message because the optional internal hard drive is not installed. This is not a critical hardware failure and does not prevent normal operation.
• Unused SFP and management interfaces are administratively shut down.
• Unit may show scratches, scuffs, label residue, or other cosmetic wear from previous installation and storage.
• Buyers should verify IOS, licensing, and feature compatibility for their intended deployment.
• Any passwords, licenses, subscriptions, or cloud services not explicitly stated are not included.

Included

• 1× Cisco ASR1002-X Enterprise Router
• 2× Cisco ASR1002-PWR-AC V03 AC Power Supplies
• Permanent Advanced Enterprise license
• 5 Gbps throughput license
• Power Cable
• Rack Ears
• Ethernet Cable

Not Included

• User Manual
• Original Packaging

Specifications Functional Condition:
F3 - Key Functions Working

Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.

Cosmetic Condition:
C4 - Used Good

Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.

Data Sanitization:
S3 - Data Clear

Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22
