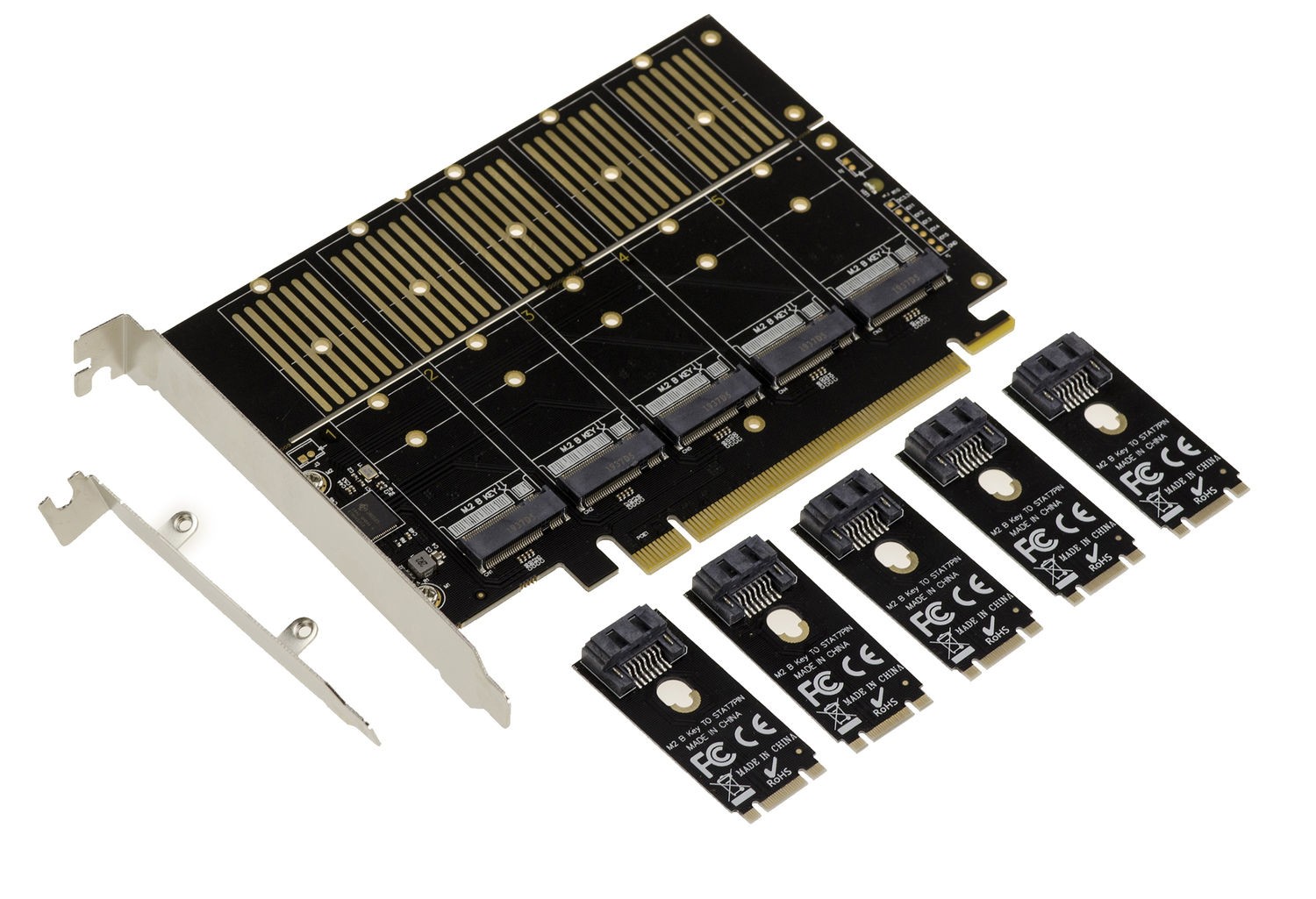

This card will allow you to control five SATA type M.2 SSDs in B Key or B+M Key. Adapters provided allow you to replace the M2 ports with classic 7-point SATA ports.
For any M.2 “B+M Key” or “B Key” type SSD, but exclusively SATA type.
Specifications:
JMB585 CHIPSET.
For PCIe 16x type 3.1 port.
PCIe GEN3 x2 bus bandwidth.
Compatible with “PCIe link layer power saving mode” energy management.
5 ports for M.2 SATA B-key or SATA hard drive (adapters provided).
Complies with SATA Revision 3.2 specifications.
AHCI, NCQ, SATA link power saving mode compatible.
Compatible SATA plug-in detection.
Drive power control disk energy management compatible. SATA Partial/Slumber power management.
Compatible with types 2230/2242/2260/2280.
The card is powered entirely from the PCIe port.
The 5 SSDs are supported by the PCIe port, they will be seen as 5 disks.
The card is "breakable" in low profile format, and supplied with a low profile bracket to be mounted in this case in place of the original bracket. It will then only support 2230 or 2242 SSD drives, or SATA drives (using the adapters provided).
Drivers for Windows 10/8/7/Vista/XP/Server 2003/2000 and Linux.
