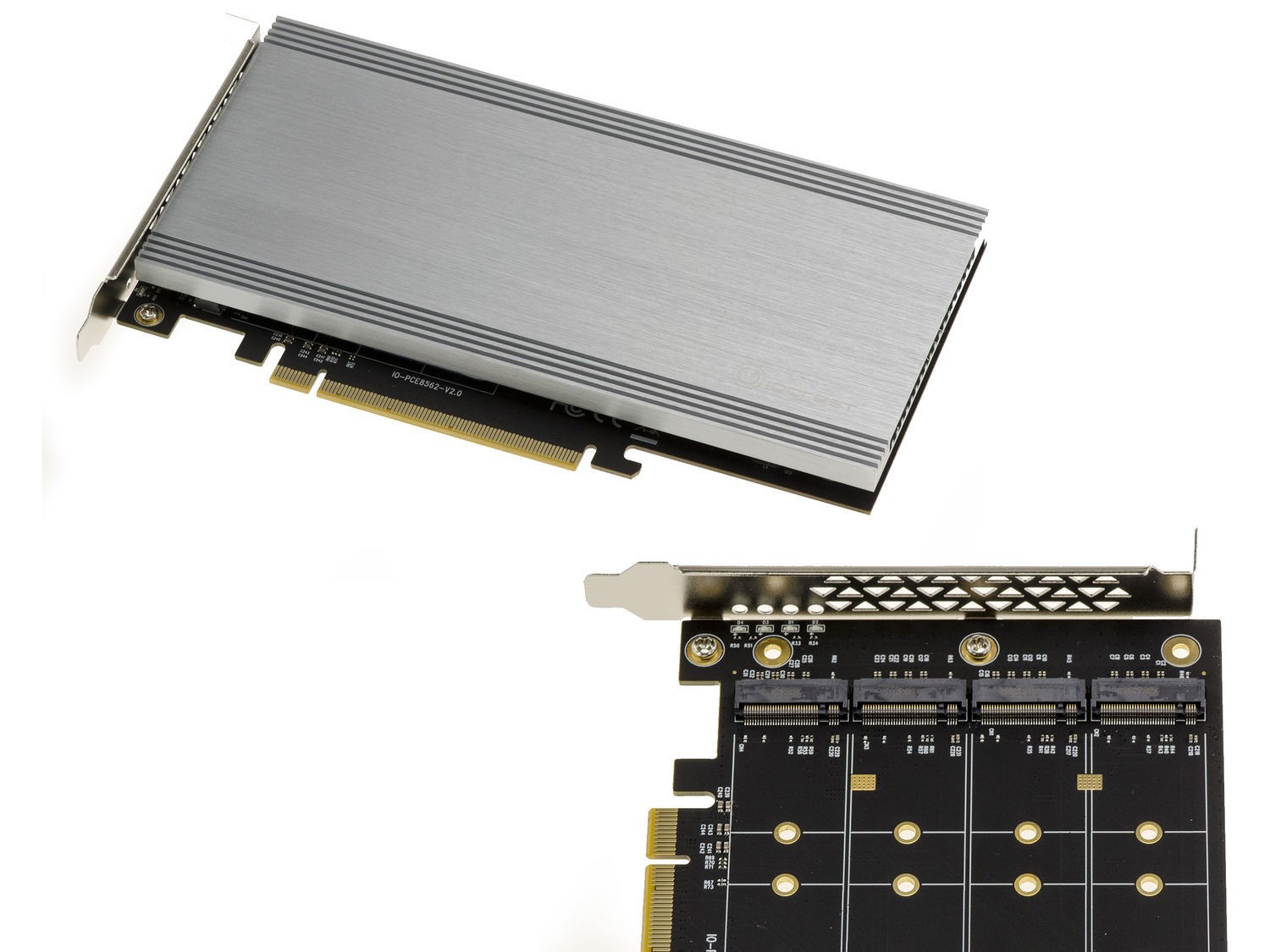

This card will allow you to control four M.2 PCIe M Key (or B+M Key) SSDs. This model has one PCIe 3.0 16x upstream port, and 4 PCIe 3.0 4x downstream ports.
When an SSD is requested, the card will itself manage the switch to this SSD, which means that the switch is not supported by the processor or by the PCIe port. This function allows the card to be accepted by motherboards that cannot manage bifurcation, and also allows optimization of the bandwidth allocated to each SSD.
For any M.2 “M Key” PCIe NVMe type SSD. On this version, the SSDs share the bandwidth in pairs, the overall throughput, although very fast, will however be less good than on the other Switchtec version.
Specifications:
For PCIe 3.0 or higher 16x port. Shared bandwidth of 10GB per pair of SSDs.
Large radiator with forced ventilation by 40mm fan.
2824 processor Management of bifurcation without restrictions.
Compatible with M2 SSD sizes 2232/40/60/80. Screws supplied.
Windows 8,8.1 and 10 (WINDOWS 10 RECOMMENDED), Linux Kernel 3.3 and newer.
This card does not support hardware RAID, but you can set up software RAID.
